TIP-ON BLUMOTION for MERIVOBOX

Well-thought-out opening system

To incorporate handleless fronts in cabinets, simply combine MERIVOBOX with the TIP-ON BLUMOTION mechanical opening support system. This combination is possible thanks to the fully redesigned, innovative L-shaped cabinet profile of MERIVOBOX. Different TIP-ON BLUMOTION units are available to suit different nominal lengths and weight ranges. All other components are universal.

Cabinet profile

Load bearing class Nominal length
40
270 - 600
270 - 600
70
450 - 600
450 - 600

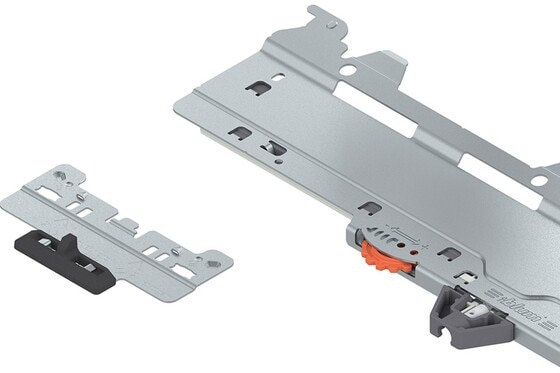

Unit and latch set

Nominal length Weight range Unit Color coding system
270-300 mm
≤ 10 kg
>10-20 kg
S0
S1
White
Light gray
350-650 mm
≤ 20 kg
15-40 kg
L1
L3
Light gray
Dust gray
450-600 mm
35-70 kg
L5
Black

Helping you select the right TIP-ON BLUMOTION unit

It is important to use the right TIP-ON BLUMOTION unit to achieve the best opening and closing action. Please use our Product Configurator to select the right hardware.

Start Product Configurator

Synchronization

We recommend using the synchronization feature to expand the trigger range and achieve top quality performance.

Trigger range with and without synchronization feature

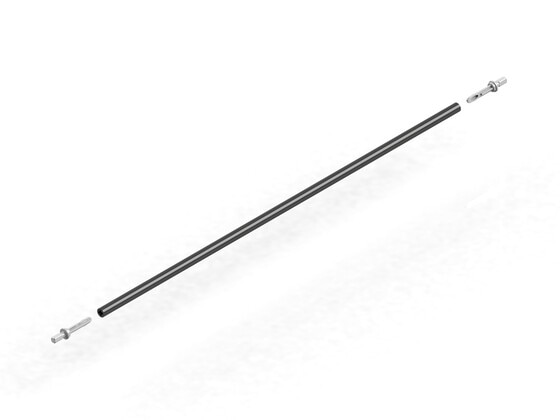

Synchronization linkage with synchronization adapters for internal cabinet widths of ≥ 294 mm

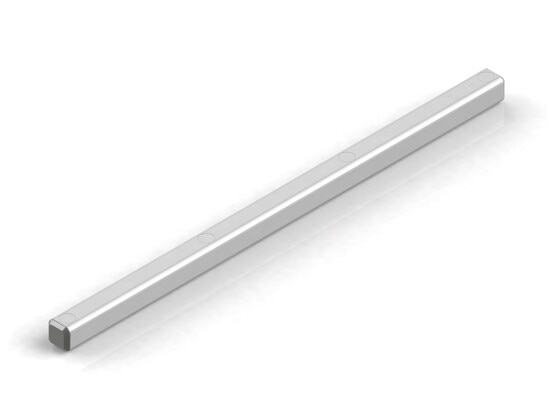

One-piece synchronization can be cut to size for internal cabinet widths of 238 – 294 mm

Applications

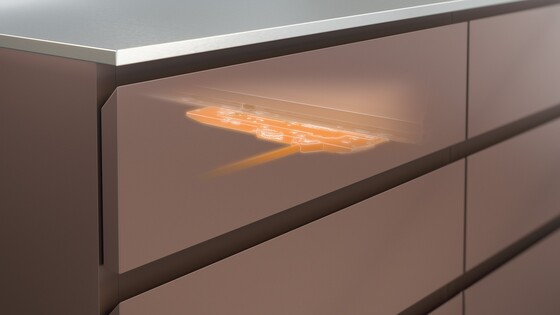

Innovative technology

TIP-ON BLUMOTION delivers top quality motion, enhances workflows and works on a purely mechanical basis.

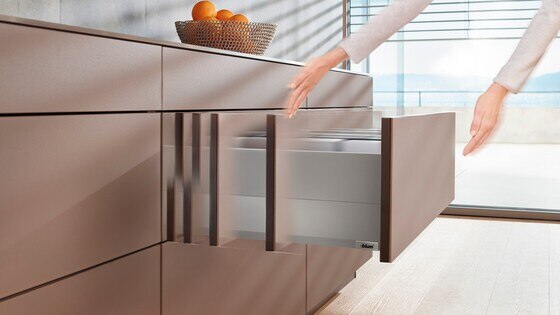

Extra convenience guaranteed

No worries if your hands are full. Thanks to TIP-ON BLUMOTION, drawers open with a single touch.

Extensive trigger range

The synchronization feature ensures an extensive trigger range so that even wide and high fronts open with ease.

Excellent corrosion protection properties in high humidity

TIP-ON BLUMOTION works on a purely mechanical basis and is ideally suited for use in bathrooms.

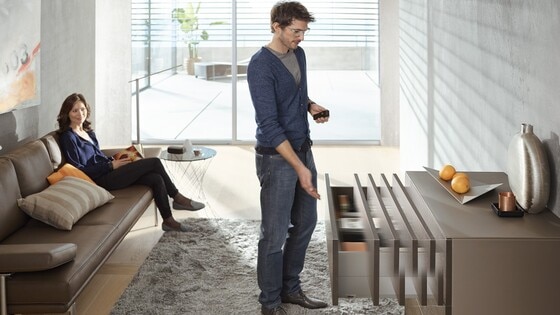

TIP-ON BLUMOTION in living rooms

TIP-ON BLUMOTION allows you to introduce modern design concepts to all living areas.

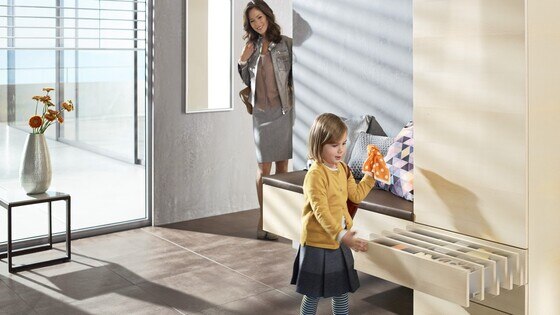

TIP-ON BLUMOTION in hallways

Even high and wide fronts open with a single touch thanks to the extensive trigger range.
