TIP-ON BLUMOTION for LEGRABOX
Combine LEGRABOX with TIP-ON BLUMOTION
LEGRABOX cabinet profiles have been designed to support TIP-ON BLUMOTION's mechanical opening support system. Different runner lengths and weight ranges can be used with different TIP-ON BLUMOTION units.

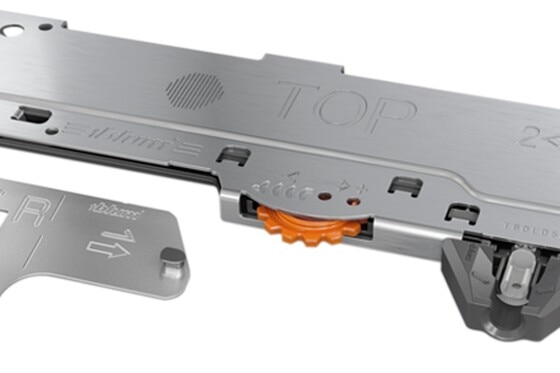

TIP-ON BLUMOTION units and triggers
| Nominal length | Weight range | Unit | Color coding system |
|---|---|---|---|
|
270 mm
|
≤ 44 lb
|
S1
|
Light gray
|
|
350-650 mm
|
≤ 44 lb
44-88 lb 88-155 lb |
L1
L3 L5 |
Light gray
Dust gray Black |
Helping you select the right TIP-ON BLUMOTION unit
It is important to use the right TIP-ON BLUMOTION unit to achieve the best results. Please use our Product Configurator to select the right fittings.
Synchronization
We recommend using the synchronization feature to ensure top quality performance.
The synchronization rod is used for opening widths of 294 mm (11-9/16") to 1365 mm (53-3/4").
The synchronization rod for narrow applications work with opening widths of 261 mm (10-9/32") to 285 mm (11-7/32").
