TIP-ON BLUMOTION for TANDEMBOX

Well-thought-out product details

A special TANDEMBOX cabinet profile has been designed to support the mechanical opening support system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.

Cabinet profile

Load bearing class Nominal length
30
270 - 600
270 - 600
65
450 - 650
450 - 650

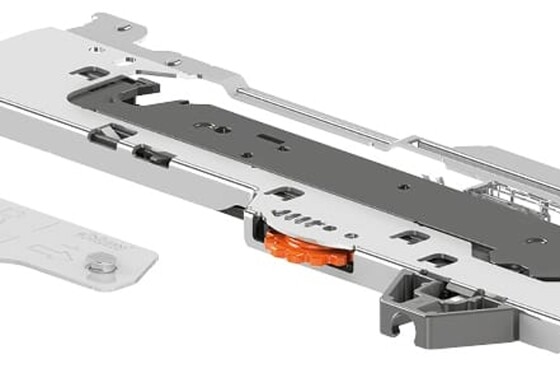

Unit and latch set

Nominal length Weight range Unit Colour coding system
270-300 mm
≤ 10 kg
10-20 kg
S0
S1
White
Light grey
350-650 mm
≤ 20 kg
15-40 kg
35-65 kg
L1
L3
L5
Light grey
Dust grey
Black

Synchronisation

We recommend using the synchronisation feature to enlarge the trigger range and achieve top quality performance. A synchronisation linkage is used to this end.

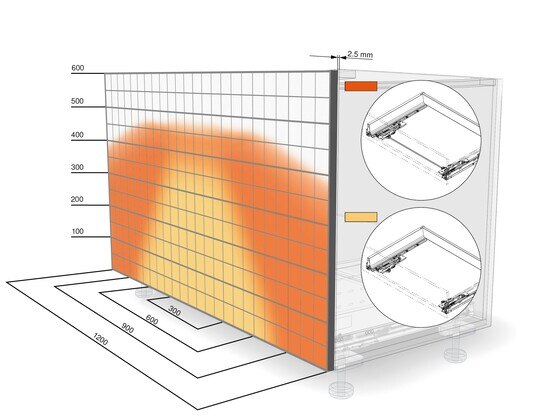

Trigger range with and without synchronisation feature

Synchronisation linkage with synchronisation adapters for internal cabinet widths of ≥ 287 mm

Case studies

Innovative technology

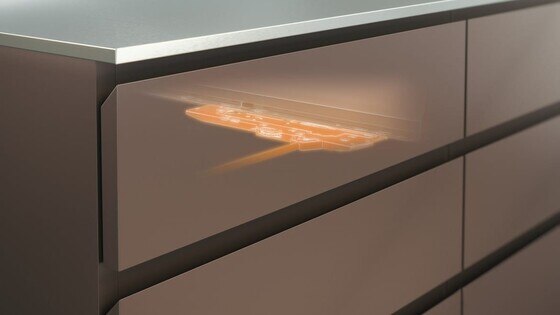

TIP-ON BLUMOTION delivers top quality motion, enhances workflows and works on a purely mechanical basis.

Enhanced user convenience

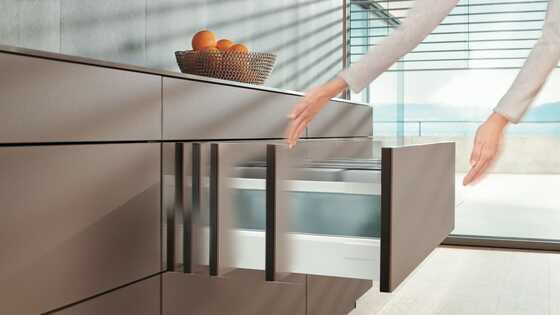

TIP-ON BLUMOTION for TANDEMBOX brings enhanced user convenience to kitchens.

Extensive trigger range

The synchronisation feature enlarges the trigger range so that even wide and high fronts open with ease.

Extra convenience guaranteed

No worries if your hands are full. Thanks to TIP-ON BLUMOTION, pull-outs open at a single touch.

Excellent corrosion protection properties in high humidity

TIP-ON BLUMOTION is a 100% mechanical system and is therefore ideally suited for implementation in bathrooms.

TIP-ON BLUMOTION in living rooms

TIP-ON BLUMOTION allows you to introduce modern design concepts to all living areas.

TIP-ON BLUMOTION in hallways

Even high and wide fronts open at a single touch thanks to the extensive trigger range.
